7 Tips for Choosing the Right Rodless Piston?

Choosing the right Rodless Piston is not simply a matter of matching bore size with air pressure. The actuator must suit the real movement, load, environment, and maintenance plan. A compact cylinder may look ideal on a drawing, yet struggle when dust, side loading, or repeated stopping enters the application.

Peter Beater, author of Pneumatic Drives, offers a useful guiding principle: “Pneumatic actuators should be selected from the motion requirement, not from pressure alone.” That idea shapes this guide. The seven tips examine load capacity, stroke length, operating speed, guiding support, sealing design, mounting conditions, and sensor compatibility. Each detail matters. A 1,000-millimeter stroke behaves differently from a short pick-and-place movement. A heavy carriage can also introduce side forces that the piston should not carry alone.

Measure the application carefully.

Check the air supply at the machine, not only in the specification sheet. Review acceleration, stopping impact, cycle frequency, and available installation space. Consider magnetic switches, cushioning, corrosion resistance, and the cost of replacement seals. These points are easy to overlook. I might once have focused too heavily on bore diameter, but that approach can create an expensive mismatch. The strongest choice is not always the largest model. It is the Rodless Piston that delivers controlled motion with suitable guidance, stable performance, and practical service access. This guide keeps that balance in view, while admitting one uncomfortable truth: catalogue data rarely tells the whole story.

Table of Contents [Hide]

1 Define Load, Stroke, and Duty: Calculate Thrust with F = pA at 6 bar

2 Compare Guidance and Bending Limits: Keep Side Loads Within Rated Values

3 Match Speed and Cushioning: Screen Travel Rates from 0.1–1.0 m/s

4 Select Seals and Materials for Temperatures from −20°C to 80°C

5 Verify Safety and Service Life: Follow ISO 4414 and Cycle-Test Requirements

Define Load, Stroke, and Duty: Calculate Thrust with F = pA at 6 bar

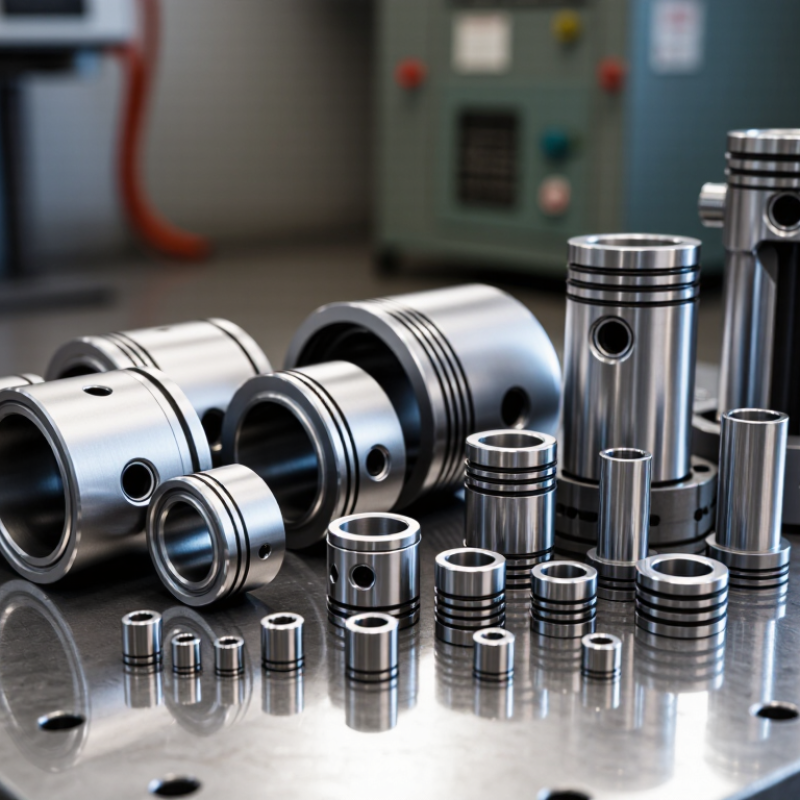

7 Tips for Choosing the Right Rodless Piston?

Define Load, Stroke, and Duty: Calculate Thrust with F = pA at 6 bar

Choosing a rodless piston starts with the load, not the catalogue bore. Measure the moving mass, friction, acceleration, and any external guide resistance. Then define the stroke length and cycle rate. A 500 mm stroke at ten cycles per minute creates different demands from a 100 mm stroke at continuous operation. Duty matters.

At 6 bar gauge pressure, use F = pA for theoretical thrust. A 100 mm bore has an area of about 7,854 mm². Since 6 bar equals 0.6 N/mm², the ideal force is approximately 4,712 N. That number is not the working force. Cushioning, seals, pressure losses, and friction reduce it. I once treated theoretical force as usable force. The actuator stalled near the end of travel.

The U.S. Department of Energy’s Improving Compressed Air System Performance sourcebook reports that leakage can waste 20–30% of compressor output in poorly maintained systems. Therefore, verify pressure at the actuator, not only at the compressor. ISO 4414 also emphasizes safe pneumatic design, risk assessment, and controlled energy release. Select a margin after testing, rather than guessing. Check side loads carefully. External guides should carry them. A rodless piston should mainly provide linear motion and thrust. Also compare the required stroke with the manufacturer’s maximum stroke, cushioning capacity, and duty rating. The calculation is simple. The assumptions are not.

Compare Guidance and Bending Limits: Keep Side Loads Within Rated Values

Choosing a rodless piston starts with more than checking bore size and stroke length. The guidance system must handle the external load created by the moving carriage. A guided carriage, roller guide, or separate linear rail may be suitable, depending on speed, alignment, and load direction. Check the rated side load and bending moment in the technical data. Do not estimate them from thrust alone.

A simple calculation helps. Side load multiplied by the distance from the guide creates bending moment. Even a light sensor can become a serious load when mounted far from the carriage. I once found a small bracket causing uneven motion because its center of gravity sat too high. The actuator still moved, but seal wear increased quickly. Measure twice.

Keep external forces within the stated limits during acceleration and stopping. A load that seems acceptable at low speed may exceed the rating during rapid reversal. Use additional guides when the carriage carries tools, clamps, or uneven weight. Keep the guide rails parallel, and avoid forcing alignment during installation. Small errors matter.

Review the duty cycle, mounting position, and expected contamination before selecting the unit. Dust, moisture, and poor lubrication can increase friction and side loading. The published limit may also assume ideal mounting conditions, which are rarely perfect in production. Leave a safety margin rather than designing directly at the maximum value. If the load path is uncertain, test the assembly with a dial indicator and record carriage deflection under motion.

7 Tips for Choosing the Right Rodless Piston

Compare guidance and bending limits by keeping the applied side load below the rated value. The chart shows representative selection cases using the same load units for direct comparison.

Selection guidance: choose a piston with a rated side load higher than the calculated application load, minimize unsupported spans, align the load with the piston axis, and use external guides whenever side loading approaches the rated limit. Values are representative engineering examples; verify final limits against the selected product's technical documentation.

Match Speed and Cushioning: Screen Travel Rates from 0.1–1.0 m/s

Choosing the Right Rodless Piston: Match Speed and Cushioning

A rodless piston should match the machine’s travel speed, load, and stopping distance. Screen travel rates from 0.1 to 1.0 m/s before selecting a cylinder. At 0.1 m/s, standard cushioning may provide gentle stops. At 1.0 m/s, stronger cushioning and careful energy calculations become essential. A heavy carriage can still create a hard impact at moderate speed.

Tip 1: Measure the real cycle, not the catalog estimate. Record travel time with the actual load, guide friction, and working pressure. Check acceleration too. A piston moving quickly may start softly but stop violently. Select cushioning based on moving mass and impact energy. Never rely on speed alone.

Tip 2: Adjust the end-of-stroke setting during commissioning. Listen for sharp knocks, watch for carriage bounce, and inspect mounting bolts after repeated cycles. These details reveal problems faster than a single stopwatch reading. If the stop feels slow, reduce cushioning carefully. If it slams, increase resistance and review the load.

Tip 3: Allow operating margin. Running continuously at the maximum listed speed leaves little room for pressure changes, temperature shifts, or uneven loading. A target near 0.7 m/s may be more reliable than a constant 1.0 m/s. I have found that small test changes often expose assumptions. The first setting is rarely perfect.

Select Seals and Materials for Temperatures from −20°C to 80°C

7 Tips for Choosing the Right Rodless Piston

A rodless piston working from −20°C to 80°C needs seals matched to temperature, motion, and media. Begin by checking the lowest starting temperature, not only the normal operating temperature. Cold air can stiffen a seal before the cylinder moves. That creates extra friction and delayed travel. Small detail. It matters.

Polyurethane seals often suit dynamic pneumatic service, but verify their low-temperature flexibility. Nitrile rubber can perform well across many general air applications. It may swell when exposed to unsuitable oils or chemicals. EPDM handles hot water and some steam effectively, yet it is usually unsuitable for mineral oils. Fluorocarbon compounds tolerate heat and chemicals, but some grades become less flexible near −20°C. Always compare the seal compound with the actual medium. Use the supplier’s tested temperature data.

Material selection also includes the piston tube, guide system, and end seals. Choose corrosion-resistant surfaces for humid environments. Check whether lubrication is continuous, occasional, or absent. Dry operation can increase wear quickly. I have seen systems fail because engineers checked peak temperature but ignored cold starts and condensation. Leave a safety margin around both temperature limits. Also examine pressure, cycling speed, stroke length, and cleaning chemicals. A seal that survives 80°C in a static test may fail sooner under fast, repeated movement. Testing the complete assembly remains the most reliable step.

Verify Safety and Service Life: Follow ISO 4414 and Cycle-Test Requirements

A reliable rodless piston begins with a safety review, not a catalog search. Check its working pressure, speed, load direction, mounting, and expected environment. ISO 4414 provides useful principles for pneumatic safety, including risk reduction, controlled exhaust, pressure limitation, and clear maintenance access. Use it as a design reference, not as proof that every installation is compliant.

Cycle testing should reflect real work. Test the piston under its expected load, speed, pressure, stroke length, and stopping pattern. Include frequent starts and stops. Add side loads if the machine creates them. Record leakage, noise, temperature, vibration, and positioning changes after each test interval. A short bench test can look impressive. It may still miss seal wear after thousands of cycles.

Ask for documented test conditions and inspection records. Confirm whether the test used clean, correctly lubricated air and realistic alignment. ISO 4414 does not provide one universal cycle count for every application, so define acceptance limits from your duty cycle and risk assessment. I have seen failures blamed on the cylinder when poor alignment caused the damage. That assumption deserves doubt. Review emergency stopping, stored air, guarding, and restart behavior before approval. Leave room for inspection. Real machines rarely remain perfect.

7 Tips for Choosing the Right Rodless Piston? - Verify Safety and Service Life: Follow ISO 4414 and Cycle-Test Requirements

Tip	Selection Dimension	What to Verify	Practical Data or Calculation	Recommended Decision Rule
1	Define the load and motion profile	Confirm moving mass, external force, stroke, speed, acceleration, duty cycle, and mounting orientation.	Cylinder thrust is approximately F = p × A, where p is effective pressure and A is piston area. Include friction, acceleration force, tooling weight, and safety margin.	Select a unit whose allowable load, speed, and moment ratings exceed the calculated application requirements; do not size by bore diameter alone.
2	Match pressure and air-quality requirements	Check operating-pressure range, maximum allowable pressure, temperature limits, filtration, lubrication, and compressed-air dryness.	Use the actual regulated pressure at the actuator, not the compressor nameplate value. Pressure losses through valves, tubing, and fittings reduce available force.	Use only components rated for the complete pressure and temperature range. Follow the supplier’s air-preparation instructions and avoid untreated or contaminated air.
3	Check guidance, side load, and moment capacity	Evaluate offset loads, cantilevered tooling, lateral forces, overturning moments, and whether external guides are required.	A rodless piston is not automatically a structural guide. Side loading can increase seal and bearing wear, especially with long strokes or unsupported payloads.	Use an external linear guide for significant lateral loads or moments unless the actuator documentation explicitly provides adequate load ratings for the application.
4	Apply ISO 4414 safety principles	Review risk reduction for unexpected start-up, stored pneumatic energy, exhaust, isolation, pressure release, guarding, and maintenance access.	ISO 4414 provides general safety rules and recommendations for pneumatic fluid-power systems; it does not replace a machine-specific risk assessment or define one universal actuator size.	Document isolation and exhaust procedures, prevent unintended motion, protect operators from moving parts, and verify that the complete machine—not only the actuator—meets applicable safety requirements.
5	Choose cushioning and speed control	Confirm end-of-stroke energy, approach speed, load direction, stopping frequency, and the need for adjustable cushioning or external shock absorption.	Kinetic energy is approximately E = ½mv². Increasing speed or moving mass sharply increases impact energy at the stroke end.	Use suitable flow controls and cushioning. Validate stopping behavior under minimum and maximum load conditions instead of relying only on nominal catalog speed.
6	Verify service life with a representative cycle test	Test the actual stroke, load, pressure, speed, acceleration, duty cycle, temperature, air quality, and mounting arrangement.	There is no single universal ISO 4414 cycle count that guarantees actuator life. A test plan should define target cycles, inspection intervals, leakage limits, force or speed limits, and failure criteria.	Use production-representative testing and record leakage, noise, travel time, end-position repeatability, seal condition, and guide wear. Base the maintenance interval on measured results.
7	Confirm installation, maintenance, and replacement needs	Check alignment tolerances, mounting access, seal replacement method, spare-part availability, sensor compatibility, and inspection requirements.	Misalignment, debris, excessive side load, poor cushioning, and untreated air are common contributors to premature wear and leakage.	Choose a design that can be correctly aligned, inspected, isolated, and serviced within the machine’s maintenance plan. Record installation torque, settings, test results, and replacement criteria.

Important: ISO 4414 should be used together with the machine manufacturer’s instructions, a documented risk assessment, and application-specific validation. Published ratings and service-life values must be confirmed for the selected actuator configuration and operating conditions.
